Pentair/ Pentek ECP20

Pentair/ Pentek ECP20

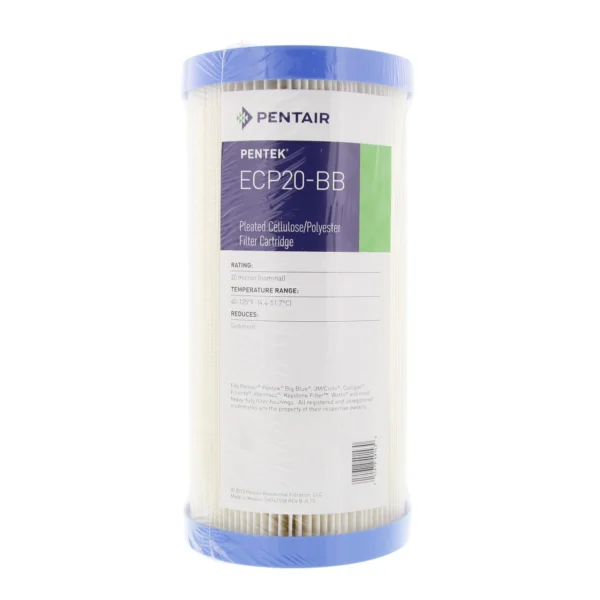

The Pentair/ Pentek ECP20 is a Pentair Pentek ECP Series pleated sediment cartridge with a 20 micron nominal filtration rating. Pentair manufactures ECP media from a resin-impregnated cellulose and polyester blend for improved wet strength, high dirt-holding capacity and low pressure drop.

Product specifications

• Manufacturer: Pentair Pentek
• Series: ECP
• Micron rating: 20 micron nominal
• Filter media: Resin-impregnated cellulose and polyester fibers
• Core: Polypropylene
• Available lengths in series: 10 inch and 20 inch
• Temperature rating: 40 to 125 F / 4.4 to 51.7 C

For related onboard filtration products, browse watermaker filters and yacht water filters and housings.

Frequently asked questions about Pentair/ Pentek ECP20

What is the micron rating of the Pentair/ Pentek ECP20?

This product is the 20 micron nominal ECP version.

What is Pentek ECP filter media made from?

Pentair specifies a resin-impregnated blend of cellulose and polyester fibers around a polypropylene core.

Is the ECP cartridge a standard polyester pleated filter?

No. The ECP series uses a cellulose-polyester media formulation. Pentek R Series cartridges use non-woven polyester media.

What temperature range does Pentair specify?

The ECP Series specification sheet lists 40 to 125 F, or 4.4 to 51.7 C.

How do I choose the correct ECP cartridge size?

Match the cartridge length, diameter and micron rating to the housing already installed. The ECP series is offered in multiple lengths and housing formats.
